平凸柱面透鏡，材料：N-BK7，增透膜T3：650-1100 nm
- 透鏡材質：N-BK7
- 設計波長/工作波長：587.6 nm / 650-1100 nm
- 可用于光束整形、光學成像等
- 產品介紹
- 曲線
產品說明
晶萃光學JCOPTIX提供的平凸柱面透鏡是一種非球面透鏡，在一維方向?qū)馐M(jìn)行整形可改變光斑尺寸。透鏡結構采用平面加凸柱面設計，焦距為正，當光束入射時，將凸面作為光束入射面可有效降低球差和色差。N-BK7是常見的光學透鏡材料，一致性好、均勻性高，多用于可見光和近紅外應用領域，晶萃提供的N-BK7系列柱面透鏡均采用N-BK7材質制成，可適配高功率激光器、適用于衛星技術和天文光學設備等。
晶萃光學JCOPTIX提供不同材質的光學透鏡，如N-BK7、紫外熔融石英。不同材質透鏡均可不鍍?cè)鐾改ぃüぷ鞑ǘ螌?、損傷閾值大）或選鍍?cè)鐾改?，晶萃光學目前針對N-BK7材質透鏡提供三個可選波段增透膜層：350-700 nm、650-1100 nm、1050-1700 nm。針對不同應用場景和需求晶萃光學提供定制服務，可定制項包括透鏡尺寸、材料、焦距、鍍膜等，如有其他需求，請聯系技術支持。
通用參數
光學元件材料 N-BK7 | 鍍膜 T3增透膜 |
工作波長 650-1100 nm | 增透膜 Ravg< 0.5% @ 650-1100 nm |
通光孔徑 >90% of Surface Dimensions | 表面光潔度（劃痕/麻點） 60/40 |
平面平整度（@633 nm） λ/2 | 曲面PV值 λ/4 |
曲面光圈數 3 | 偏心度 < 3 arcmin |
損傷閾值 0.2 J/cm2 ，1030 nm，230 fs，10 Hz |

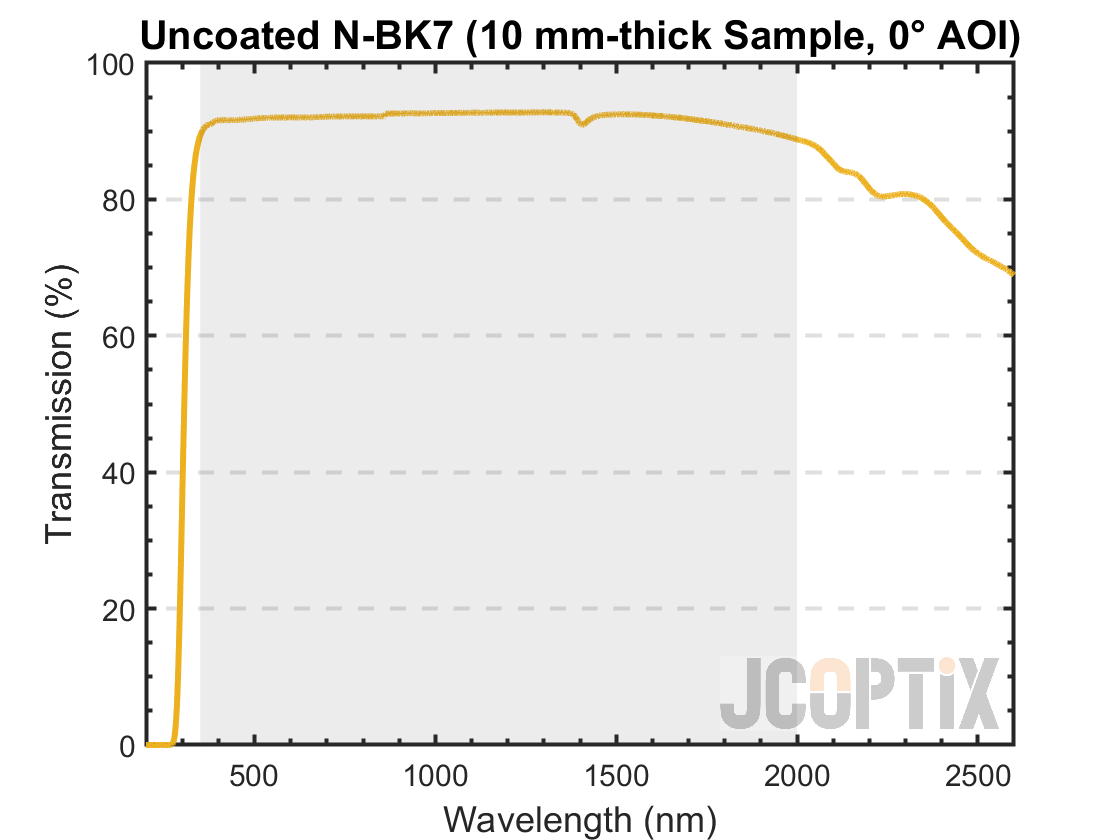

Uncoated N-BK7 Transmission

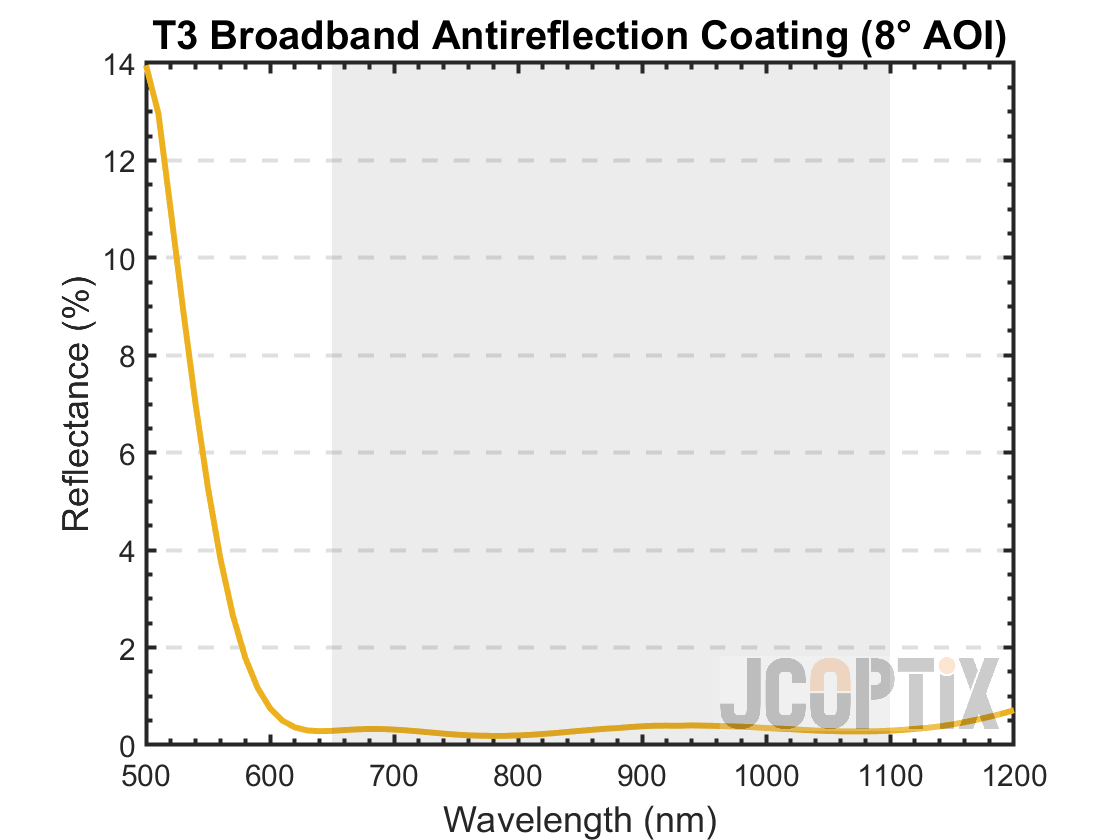

T3 Broadband AR Coating
平凸柱面透鏡，材料：N-BK7，增透膜T3：650-1100 nm
