消色差膠合透鏡，工作波長：650-1050 nm

  • 工作波段：650-1050 nm
  • 光學性能優于單透鏡
  • 工作波段具有近衍射極限性能
  • 產品介紹
  • 曲線

產品說明

消色差透鏡通常由多個光學元件膠合而成，交替使用低折射率材料的正透鏡（例如冕玻璃）和高折射率材料的負透鏡（例如燧石玻璃）。選擇并優化這些元素，以便通過負透鏡校正正透鏡的色散，從而最小化色差。消色差透鏡能夠在工作波段內提供近乎恒定的焦距，從而具有出色的離軸性能。與單透鏡相比，消色差膠合透鏡為用戶提供了更多的設計選擇，從而在視覺成像和激光束操縱應用中性能卓越。我們的透鏡是經過計算機設計優化的，可最大程度地減少像差并提供較小的聚焦光斑。

晶萃光學JCOPTIX的近紅外消色差透鏡是針對706.5 nm、855.0 nm和1015 nm而設計的。對于任何近紅外波段的單色應用，消色差透鏡都優于單透鏡。當使用諸如激光等單色光源時,可以形成衍射極限光斑。

晶萃光學JCOPTIX提供的可見光消色差透鏡直徑為12.7 mm、25.4 mm和50.8 mm，可根據實際應用場景選擇不同的工作波長版本，分別為400-700 nm、650-1050 nm、1050-1700 nm和400-1100 nm。針對工作波段優化的增透膜能有效減少表面反射（單面平均反射率小于1%），提高透鏡的透過率。如有其他特殊定制需求，請聯系技術支持。

通用參數

通光孔徑
>90% of Diameter
工作波長
650-1050 nm
設計波長
706.5 nm、855 nm、 1015 nm
鍍膜
增透膜
增透膜
Ravg< 0.5%
直徑公差
+0.00/-0.10 mm
焦距公差
± 1%
偏心度
< 3 arcmin
面型PV值
λ/4
球面光圈數
3
表面光潔度（劃痕/麻點）
40/20
工作溫度
-40 - +85 °C

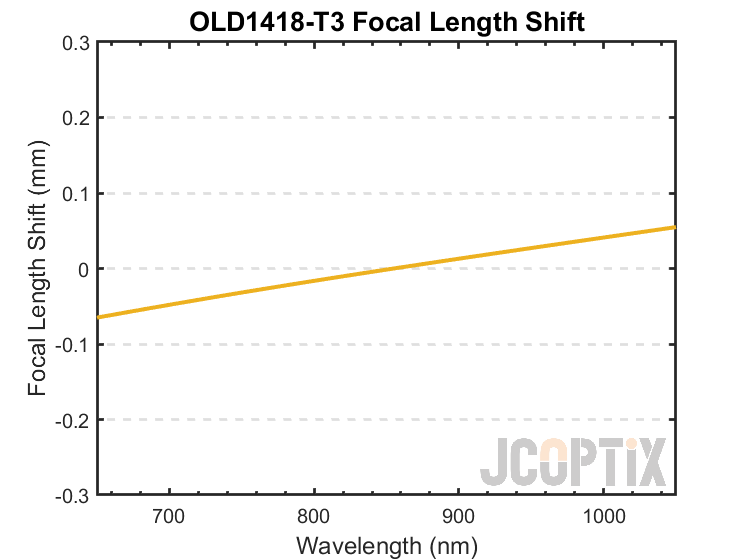

  • OLD1418-T3 Focal Length Shift

    OLD1418-T3 Focal Length Shift

  • OLD1418-T3 Theoretical Transmission

    OLD1418-T3 Theoretical Transmission

  • OLD1423-T3 Focal Length Shift

    OLD1423-T3 Focal Length Shift

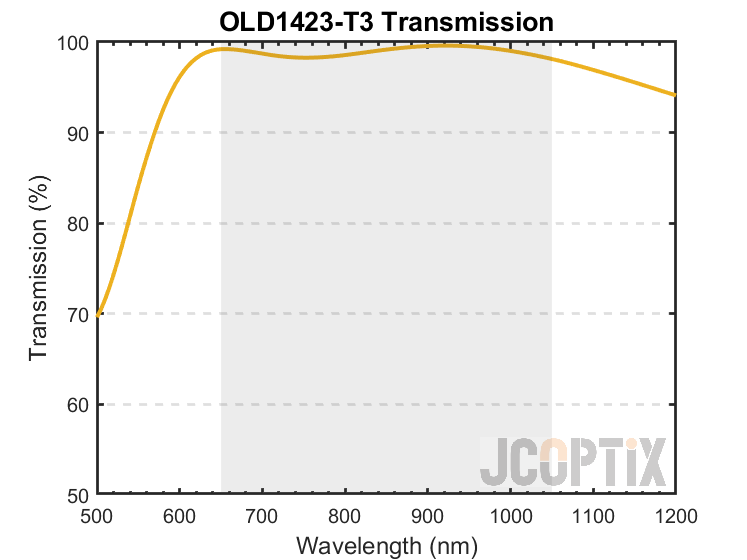

  • OLD1423-T3 Theoretical Transmission

    OLD1423-T3 Theoretical Transmission

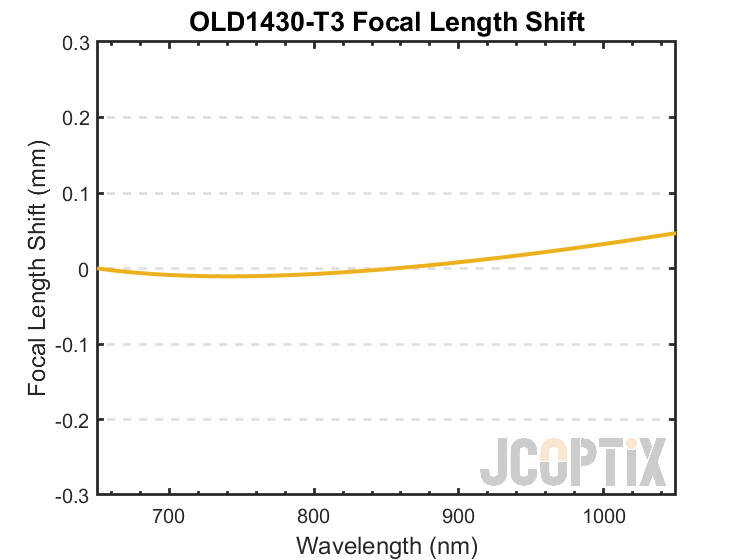

  • OLD1430-T3 Focal Length Shift

    OLD1430-T3 Focal Length Shift

  • OLD1430-T3 Theoretical Transmission

    OLD1430-T3 Theoretical Transmission

  • OLD1436-T3 Focal Length Shift

    OLD1436-T3 Focal Length Shift

  • OLD1436-T3 Theoretical Transmission

    OLD1436-T3 Theoretical Transmission

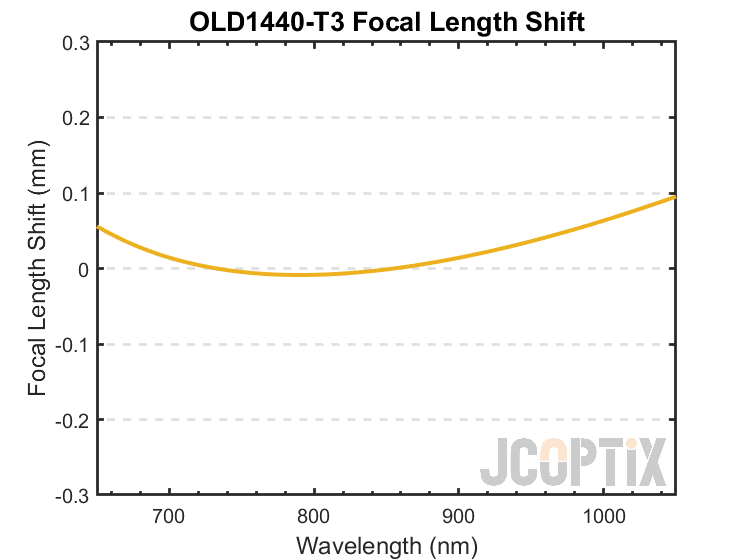

  • OLD1440-T3 Focal Length Shift

    OLD1440-T3 Focal Length Shift

  • OLD1440-T3 Theoretical Transmission

    OLD1440-T3 Theoretical Transmission

  • OLD2430-T3 Focal Length Shift

    OLD2430-T3 Focal Length Shift

  • OLD2430-T3 Theoretical Transmission

    OLD2430-T3 Theoretical Transmission

  • OLD2432-T3 Focal Length Shift

    OLD2432-T3 Focal Length Shift

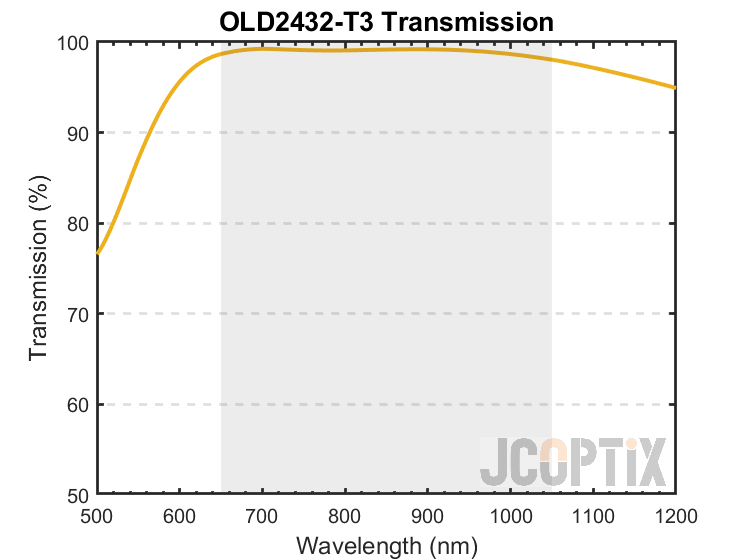

  • OLD2432-T3 Theoretical Transmission_202505211408288813.png

    OLD2432-T3 Theoretical Transmission_202505211408288813.png

  • OLD2434-T3 Focal Length Shift

    OLD2434-T3 Focal Length Shift

  • OLD2434-T3 Theoretical Transmission

    OLD2434-T3 Theoretical Transmission

  • OLD2435-T3 Focal Length Shift

    OLD2435-T3 Focal Length Shift

  • OLD2435-T3 Theoretical Transmission

    OLD2435-T3 Theoretical Transmission

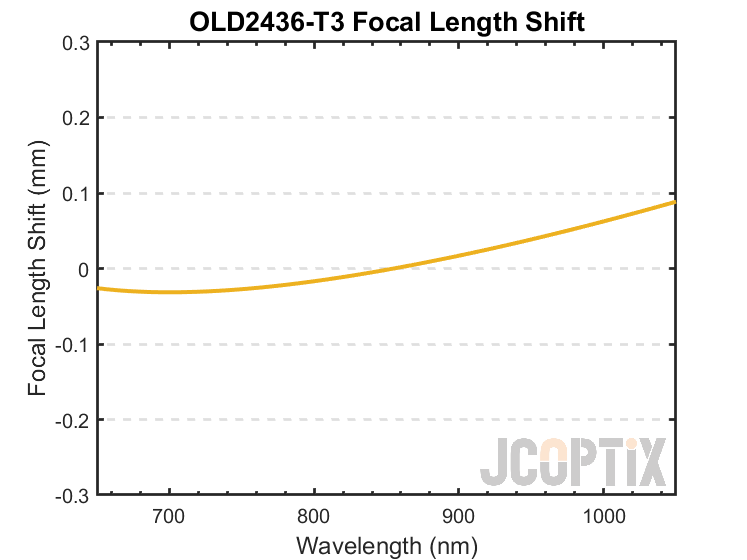

  • OLD2436-T3 Focal Length Shift

    OLD2436-T3 Focal Length Shift

  • OLD2436-T3 Theoretical Transmission

    OLD2436-T3 Theoretical Transmission

  • OLD2438-T3 Focal Length Shift

    OLD2438-T3 Focal Length Shift

  • OLD2438-T3 Theoretical Transmission

    OLD2438-T3 Theoretical Transmission

  • OLD2440-T3 Focal Length Shift

    OLD2440-T3 Focal Length Shift

  • OLD2440-T3 Theoretical Transmission

    OLD2440-T3 Theoretical Transmission

  • OLD2441-T3 Focal Length Shift

    OLD2441-T3 Focal Length Shift

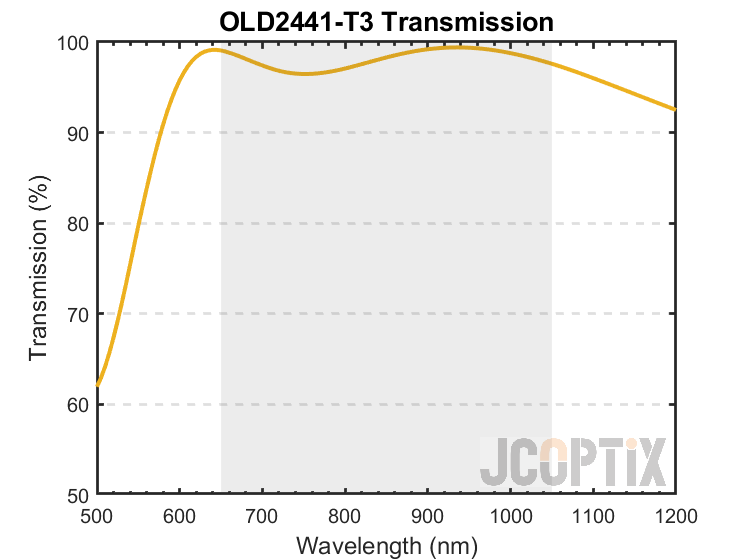

  • OLD2441-T3 Theoretical Transmission

    OLD2441-T3 Theoretical Transmission

  • OLD2444-T3 Focal Length Shift

    OLD2444-T3 Focal Length Shift

  • OLD2444-T3 Theoretical Transmission

    OLD2444-T3 Theoretical Transmission

  • OLD2448-T3 Focal Length Shift

    OLD2448-T3 Focal Length Shift

  • OLD2448-T3 Theoretical Transmission

    OLD2448-T3 Theoretical Transmission

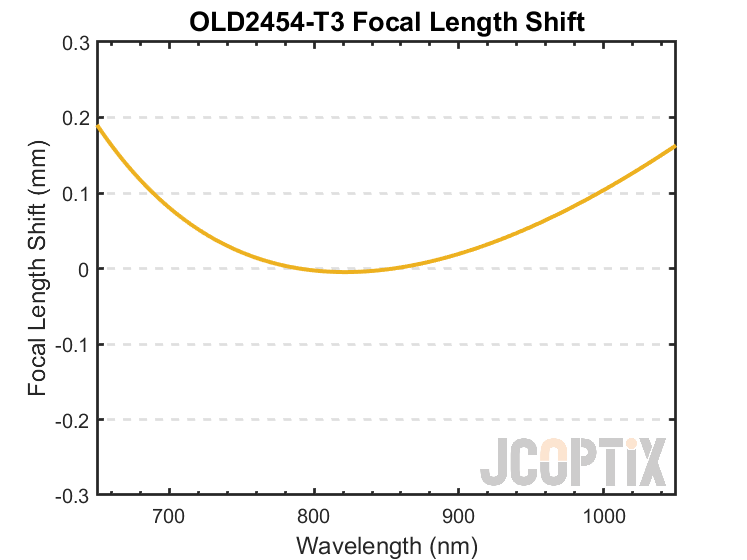

  • OLD2454-T3 Focal Length Shif

    OLD2454-T3 Focal Length Shif

  • OLD2454-T3 Theoretical Transmission_202505211408292436.png

    OLD2454-T3 Theoretical Transmission_202505211408292436.png

  • OLD2466-T3 Focal Length Shift

    OLD2466-T3 Focal Length Shift

  • OLD2466-T3 Theoretical Transmission_202505211408293374.png

    OLD2466-T3 Theoretical Transmission_202505211408293374.png

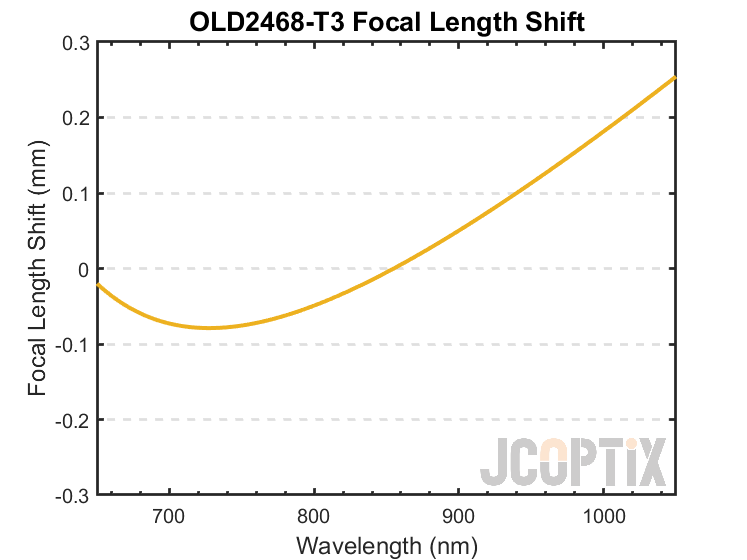

  • OLD2468-T3 Focal Length Shift

    OLD2468-T3 Focal Length Shift

  • OLD2468-T3 Theoretical Transmission_202505211408294623.png

    OLD2468-T3 Theoretical Transmission_202505211408294623.png

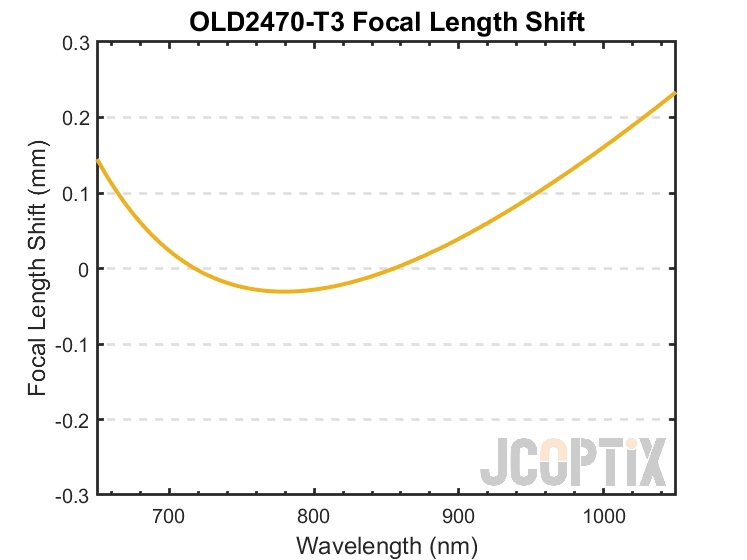

  • OLD2470-T3 Focal Length Shift

    OLD2470-T3 Focal Length Shift

  • OLD2470-T3 Theoretical Transmission_202505211408296342.png

    OLD2470-T3 Theoretical Transmission_202505211408296342.png

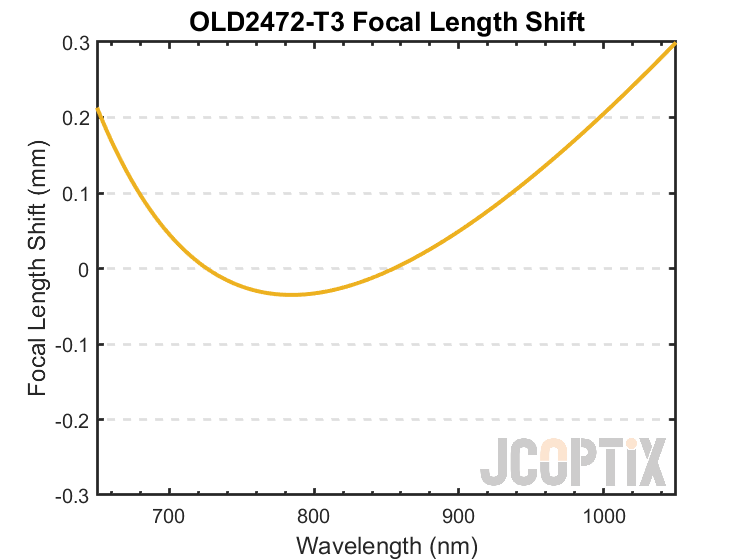

  • OLD2472-T3 Focal Length Shif

    OLD2472-T3 Focal Length Shif

  • OLD2472-T3 Theoretical Transmission_202505211408296655.png

    OLD2472-T3 Theoretical Transmission_202505211408296655.png

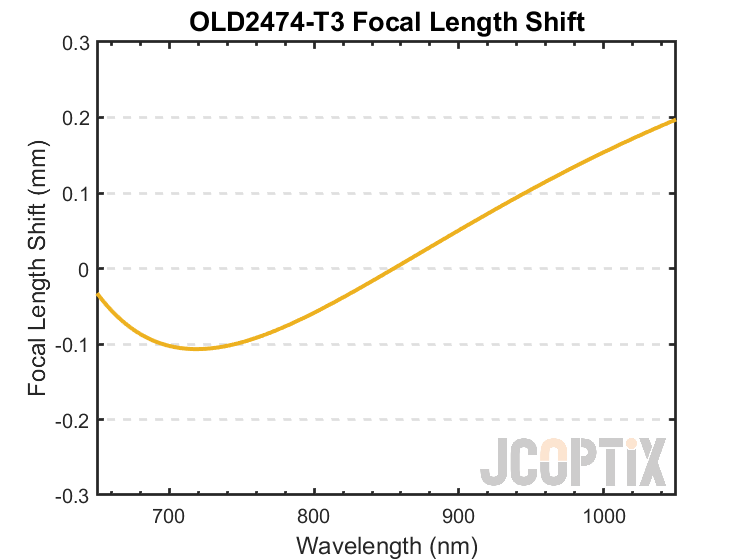

  • OLD2474-T3 Focal Length Shift

    OLD2474-T3 Focal Length Shift

  • OLD2474-T3 Theoretical Transmission

    OLD2474-T3 Theoretical Transmission

  • OLD3240-T3 Focal Length Shift

    OLD3240-T3 Focal Length Shift

  • OLD3240-T3 Theoretical Transmission

    OLD3240-T3 Theoretical Transmission

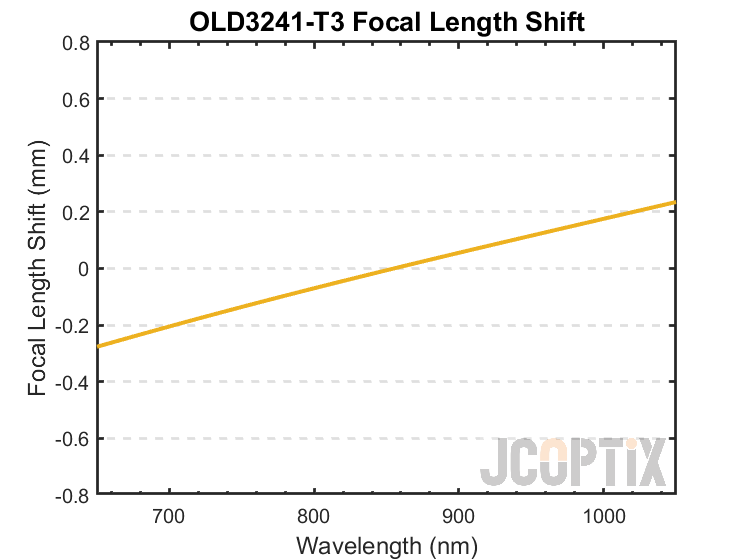

  • OLD3241-T3 Focal Length Shift

    OLD3241-T3 Focal Length Shift

  • OLD3241-T3 Theoretical Transmission

    OLD3241-T3 Theoretical Transmission

  • OLD3244-T3 Focal Length Shift

    OLD3244-T3 Focal Length Shift

  • OLD3244-T3 Theoretical Transmission

    OLD3244-T3 Theoretical Transmission

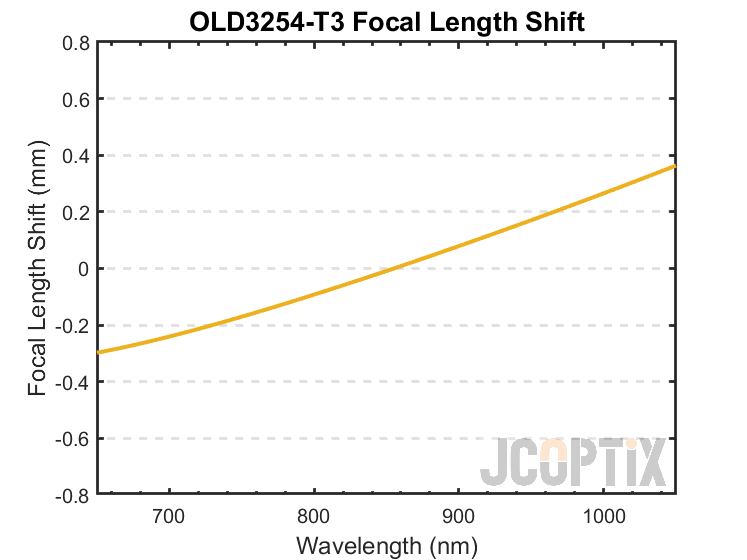

  • OLD3254-T3 Focal Length Shift

    OLD3254-T3 Focal Length Shift

  • OLD3254-T3 Theoretical Transmission

    OLD3254-T3 Theoretical Transmission

  • OLD3266-T3 Focal Length Shift

    OLD3266-T3 Focal Length Shift

  • OLD3266-T3 Theoretical Transmission

    OLD3266-T3 Theoretical Transmission

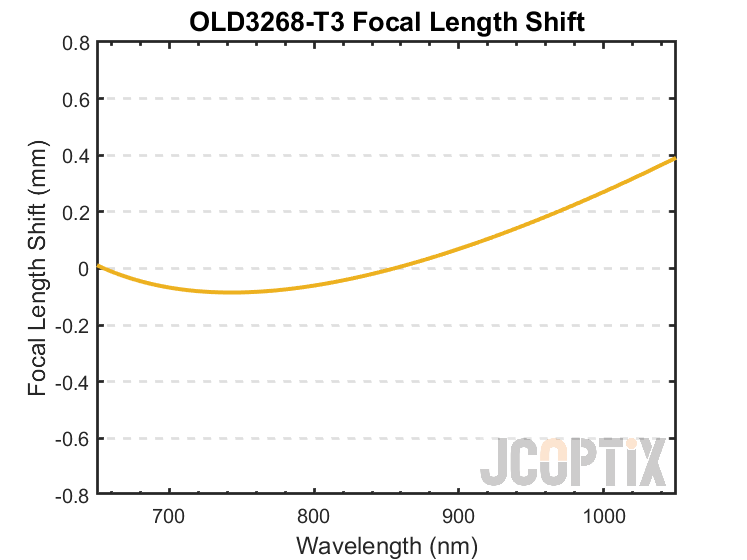

  • OLD3268-T3 Focal Length Shift

    OLD3268-T3 Focal Length Shift

  • OLD3268-T3 Theoretical Transmission

    OLD3268-T3 Theoretical Transmission

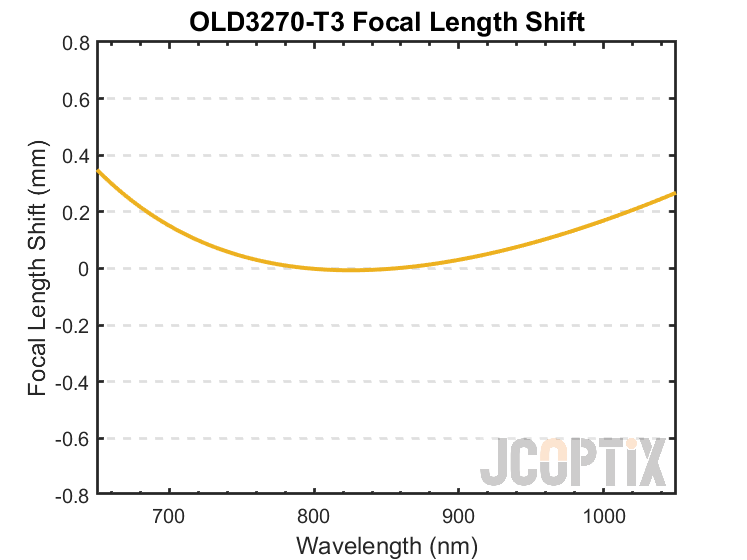

  • OLD3270-T3 Focal Length Shift

    OLD3270-T3 Focal Length Shift

  • OLD3270-T3 Theoretical Transmission

    OLD3270-T3 Theoretical Transmission

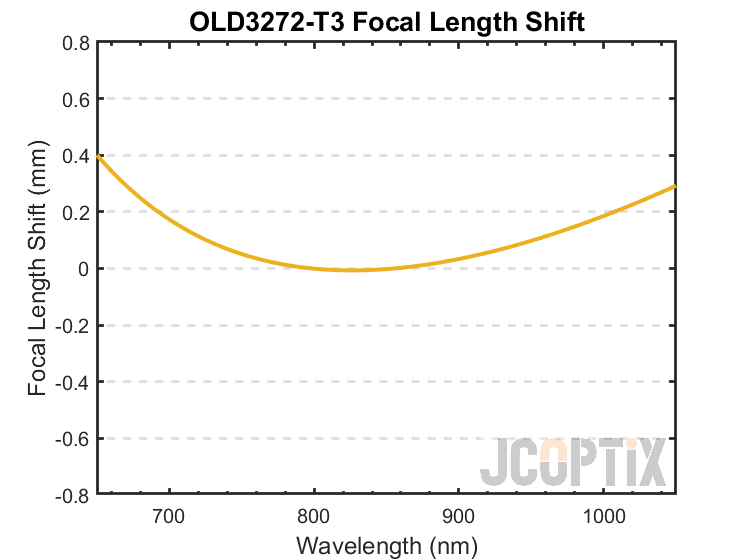

  • OLD3272-T3 Focal Length Shift

    OLD3272-T3 Focal Length Shift

  • OLD3272-T3 Theoretical Transmission

    OLD3272-T3 Theoretical Transmission

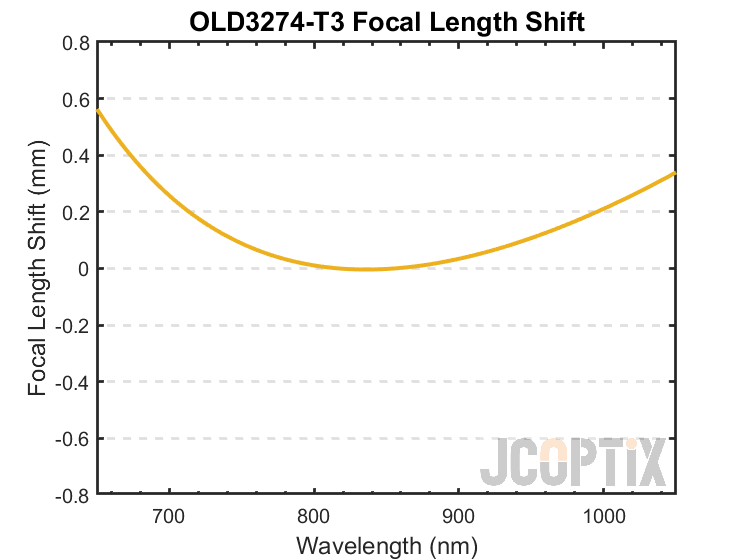

  • OLD3274-T3 Focal Length Shift

    OLD3274-T3 Focal Length Shift

  • OLD3274-T3 Theoretical Transmission

    OLD3274-T3 Theoretical Transmission

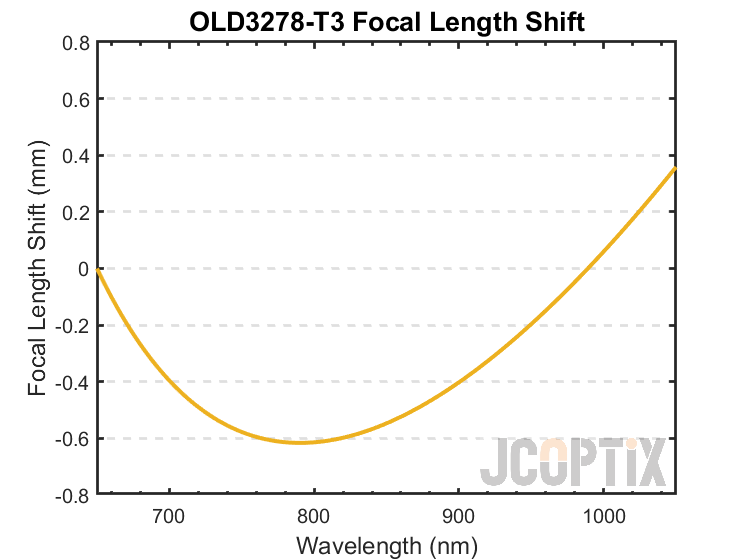

  • OLD3278-T3 Focal Length Shift

    OLD3278-T3 Focal Length Shift

  • OLD3278-T3 Theoretical Transmission

    OLD3278-T3 Theoretical Transmission

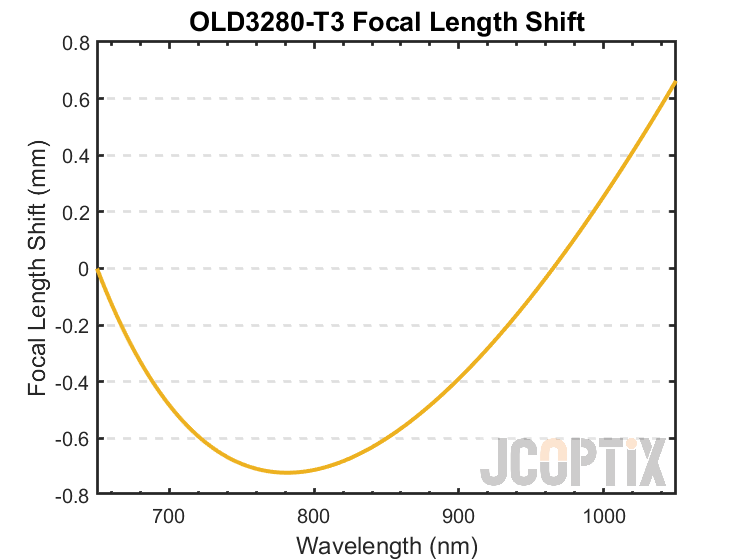

  • OLD3280-T3 Focal Length Shift

    OLD3280-T3 Focal Length Shift

  • OLD3280-T3 Theoretical Transmissio

    OLD3280-T3 Theoretical Transmissio

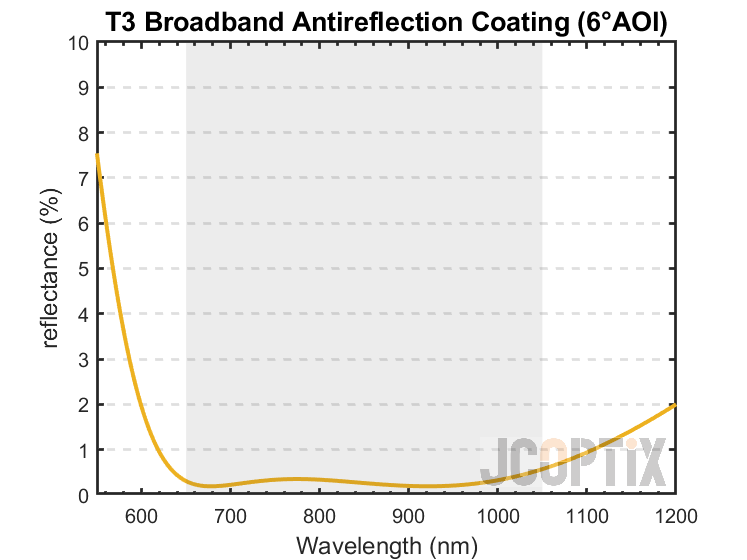

  • T3 Broadband AR Coating

    T3 Broadband AR Coating

消色差膠合透鏡，工作波長：650-1050 nm，安裝于標準透鏡套筒

產品型號3D預覽光學元件材質直徑焦距分享對比單價發貨日期購物車
N-BAF10/N-SF6HT12.7 mm19.0 mm
￥498.00 當天
N-LAK22/N-SF6HT12.7 mm25.0 mm
￥498.00 當天
N-LAK22/N-SF6HT12.7 mm30.0 mm
￥498.00 當天
N-BAF10/N-SF6HT12.7 mm50.0 mm
￥498.00 當天
N-BAF10/N-SF6HT12.7 mm75.0 mm
￥498.00 當天
N-BAF10/N-SF6HT25.4 mm30.0 mm
￥728.00 4周
N-BAF10/N-SF6HT25.4 mm35.0 mm
￥728.00 當天
N-BAF10/N-SF6HT25.4 mm40.0 mm
￥728.00 當天
N-LAK22/N-SF6HT25.4 mm45.0 mm
￥728.00 當天
N-LAK22/N-SF6HT25.4 mm50.0 mm
￥728.00 當天
N-LAK22/N-SF6HT25.4 mm60.0 mm
￥728.00 當天
N-BAF10/N-SF6HT25.4 mm75.0 mm
￥728.00 當天
N-BAF10/N-SF6HT25.4 mm80.3 mm
￥728.00 當天
N-LAK22/N-SF6HT25.4 mm100.0 mm
￥728.00 當天
N-BK7/N-SF825.4 mm125.0 mm
￥728.00 當天
N-LAK22/N-SF6HT25.4 mm150.0 mm
￥728.00 當天
N-LAK22/N-SF1025.4 mm200.0 mm
￥728.00 當天
SF5/N-SF6HT25.4 mm250.0 mm
￥728.00 當天
SF5/N-SF6HT25.4 mm300.0 mm
￥728.00 當天
SF5/N-SF6HT25.4 mm400.0 mm
￥728.00 當天
N-SF10/N-SF6HT25.4 mm500.0 mm
￥728.00 當天
N-LAK22/N-SF6HT50.8 mm75.0 mm
￥998.00 當天
N-BAF10/N-SF6HT50.8 mm80.0 mm
￥998.00 當天
N-LAK22/N-SF6HT50.8 mm100.0 mm
￥998.00 當天
N-LAK22/N-SF6HT50.8 mm150.0 mm
￥998.00 當天
N-LAK22/N-SF6HT50.8 mm200.0 mm
￥998.00 當天
N-BAF10/N-SF6HT50.8 mm250.0 mm
￥998.00 當天
N-SK2/N-SF1150.8 mm300.0 mm
￥998.00 當天
N-SK2/N-SF550.8 mm400.0 mm
￥998.00 當天
N-SK2/N-SF550.8 mm500.0 mm
￥998.00 當天
N-BAF10/N-SF1050.8 mm750.0 mm
￥998.00 當天
N-BAF10/N-SF1050.8 mm1000.0 mm
￥998.00 當天

消色差膠合透鏡，工作波長：650-1050 nm

產品型號3D預覽光學元件材質直徑焦距分享對比單價發貨日期購物車
N-BAF10/N-SF6HT12.7 mm19.0 mm
￥418.00 當天
N-LAK22/N-SF6HT12.7 mm25.0 mm
￥418.00 當天
N-LAK22/N-SF6HT12.7 mm30.0 mm
￥418.00 當天
N-BAF10/N-SF6HT12.7 mm50.0 mm
￥418.00 4周
N-BAF10/N-SF6HT12.7 mm75.0 mm
￥418.00 當天
N-BAF10/N-SF6HT25.4 mm30.0 mm
￥628.00 4周
N-BAF10/N-SF6HT25.4 mm35.0 mm
￥628.00 當天
N-BAF10/N-SF6HT25.4 mm40.0 mm
￥628.00 當天
N-LAK22/N-SF6HT25.4 mm45.0 mm
￥628.00 當天
N-LAK22/N-SF6HT25.4 mm50.0 mm
￥628.00 當天
N-LAK22/N-SF6HT25.4 mm60.0 mm
￥628.00 當天
N-BAF10/N-SF6HT25.4 mm75.0 mm
￥628.00 當天
N-BAF10/N-SF6HT25.4 mm80.3 mm
￥628.00 當天
N-LAK22/N-SF6HT25.4 mm100.0 mm
￥628.00 當天
N-BK7/N-SF825.4 mm125.0 mm
￥628.00 當天
N-LAK22/N-SF6HT25.4 mm150.0 mm
￥628.00 當天
N-LAK22/N-SF1025.4 mm200.0 mm
￥628.00 當天
SF5/N-SF6HT25.4 mm250.0 mm
￥628.00 當天
SF5/N-SF6HT25.4 mm300.0 mm
￥628.00 當天
SF5/N-SF6HT25.4 mm400.0 mm
￥628.00 當天
N-SF10/N-SF6HT25.4 mm500.0 mm
￥628.00 當天
N-LAK22/N-SF6HT50.8 mm75.0 mm
￥878.00 當天
N-BAF10/N-SF6HT50.8 mm80.0 mm
￥878.00 當天
N-LAK22/N-SF6HT50.8 mm100.0 mm
￥878.00 當天
N-LAK22/N-SF6HT50.8 mm150.0 mm
￥878.00 當天
N-LAK22/N-SF6HT50.8 mm200.0 mm
￥878.00 當天
N-BAF10/N-SF6HT50.8 mm250.0 mm
￥878.00 當天
N-SK2/N-SF1150.8 mm300.0 mm
￥878.00 當天
N-LAK22/N-SF6HT50.8 mm400.0 mm
￥878.00 當天
N-SK2/N-SF550.8 mm500.0 mm
￥878.00 當天
N-BAF10/N-SF1050.8 mm750.0 mm
￥878.00 當天
N-BAF10/N-SF1050.8 mm1000.0 mm
￥878.00 當天
